Visualization for model building 2: Expose, estimate, evaluate

Geographic dependency and non-stationarity

In the last session we identified two ways in which geographic grouping in residuals can be understood:

1. Spatial dependence in variable values. The geography of GB is quite socially distinctive, so it is reasonable to expect spatial dependence in observed demographic values. For example, the range in variables measuring relative employment in heavy industry, or residents that are white, is likely to be bounded to economic regions and metropolitan-peripheral regional contexts.
2. Spatial non-stationarity in processes. This is where associations between variables might be geographically grouped: that the associations vary for different parts of the country and so there is heterogeneity in process. For example, high levels of EU-born migration might affect political attitudes, and thus area-level voting, differently in different parts of the country.

‘Global’ models that do not take these types of structure and effect into account may misrepresent the processes they are trying to capture and hide more subtle insights into phenomena. And so this session tries to (briefly) address both.

Representing geographic context

There are different ways of constituting geographic context. We have talked about patterning in residuals as being spatial, with values varying smoothly and continuously depending on location. This might be the case, and spatial autocorrelation is present in almost all datasets (e.g. Tobler’s first law). But given the phenomena we are studying – variation in political voting behaviour and demographic composition of constituencies deliberately linked to places left-behind by structural-economic change – it also plausible that distinct contexts are linked to regions. The residuals in the previous session’s Map LineUp – also below – do seem to be grouped by regional boundaries, particularly Scotland looks categorically different (for obvious reasons). This suggests that geographic context might be usefully represented as a category rather than continuous variable (location in x,y). For most of the session we will represent geographic context as a regional grouping and cover approaches both to modelling spatial dependence in values and spatial non-stationarity in processes.

Figure 1: Map LineUp of residuals in which the ‘real’ dataset is presented alongside 8 decoy plots generated by randomly permuting the observed residuals around constituencies.

Geographic context as grouped nuisance term

A common approach to treating geographic dependence in the values of variables is to model geographic context as a Fixed Effect (FE).

A dummy variable is created for each group (region in our case), and every region receives a constant; you can think of this as a separate intercept for its regression line. Any group-level sources of variation in the outcome are collapsed into the FE variable, which means that regression coefficients are not complicated by this more messy variation – they now capture the association between demographics and Leave after adjusting for systematic differences in the Leave vote due to region. So, for example, we know that Scotland is politically different from the rest of GB and that this appears to drag down the observed Leave vote for its constituencies, and so the constant term on region adjusts for this and prevents the estimated regression coefficients (inferred associations between variables) from being affected. The constant term also allows you to estimate the ‘base level’ of the outcome for each grouping variable – e.g. net of demographic composition, the expected Leave vote in a particular region.

The linear regression model introduced last week can be easily extended with the FE term (\(\textcolor{highlight}{\gamma_{j}}\)). For a single variable model:

\[\begin{align*} y_{i}&= \textcolor{highlight}{\gamma_{j}} + \beta_{1}x_{i1} + \varepsilon_{i} \\ \end{align*}\]

So we now estimate the Leave vote in each constituency (\(y_{i}\)) as a function of:

• \(\textcolor{highlight}{\gamma_{j}}\), a constant term similar to an intercept for region \(j\), \(+\)
• \(\beta_{1}=\beta_{1}x_{i1}\), the slope, indicating in which direction and to what extent some explanatory variable measured at constituency \(i\) is associated with Leave, \(+\)
• \(\varepsilon_{i}\), the difference between \(y_{i}\) (the observed value) at constituency \(i\) and the unobservable true population value of the Leave vote in that constituency (statistical error)

To illustrate this, Figure 2 is an updated set of scatterplots now annotated with ‘virtual’ regression lines for single variable linear regression models fit separately for each explanatory variable with a region FE. Plotting the virtual regression lines – regression lines offset by the FE constant – is interesting as it tells us a little about the nature of association in our explanatory variables. Given the way we have specified our model, the FE constants serve effectively as intercepts, \(R^2\) is no longer meaningful and so other measures of fit such as AIC should be used to evaluate relative fit.

For the degree-educated and professional variables especially, regional dependence in Leave voting needs to be adjusted for – once taken into account, there is a very strong association between degree-education and Leave, most obvious in the lines for Scotland (red). Although we are not yet modelling for this explicitly, eyeballing the chart, there is not obvious evidence for regional non-stationarity in the associations with Leave for degree-educated and so it might be regarded as a ‘global’ variable – a clear positive association with Leave irrespective of region. There may be regional specificity in the associations with Leave for the other explanatory variables.

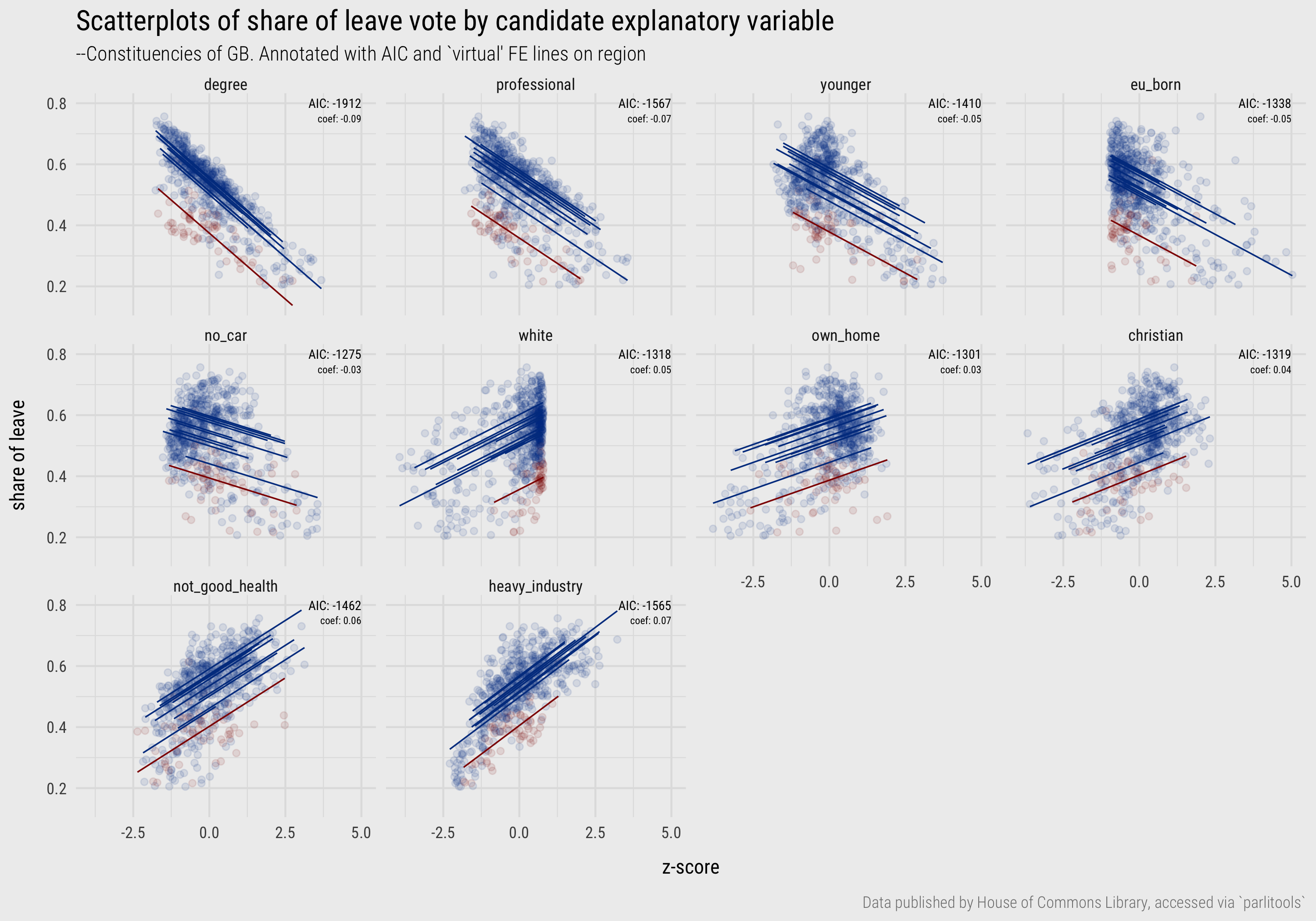

Figure 2: Scatterplots of constituency Leave vote against candidate explanatory variables, annotated with FE ‘virtual’ regression lines, coefficients and model fit (AIC – the lower the value, better the model). Scotland is highlighted red.

Presented in Figure 3 are updated regression coefficients for the model fit with a FE on region. In the left panel are the FE constants. Together these capture the variance in Leave vote between regions after accounting for demographic composition. These coefficients have interesting properties: they are the estimated size of the Leave vote for a constituency in a region net of demographic composition. London is in interesting here. When initially analysing variation in the vote, constituencies in Scotland and London were distinctive in voting in much smaller proportions than the rest of the country for Leave. Given the associations we observe with Leave voting and demographic composition, however, if we were to randomly sample two constituencies that contain the same demographic characteristics, one in London and one in another region (say North West), on average we’d expect Leave for the constituency in London to be higher (~60%) than that sampled from North West (~51%). A separate, and more anticipated pattern is that Scotland would have a lower Leave vote (~38%) – that is, net of demographics there is some additional context in Scotland that means Leave is lower than in other regions.

In the right panel are the regression coefficients net of this between-region variation. Compared to the model specified without FEs, the coefficients are estimated with less uncertainty (tighter standard errors). In the previous session, the white variable was shown counterintuitively to have a slight negative association with Leave (although there was high uncertainty here). Now the white variable has a direction of effect that conforms to expectation – net of variation in other demographics increased proportions of white residents is associated with increased Leave voting. For the other variable with a counterintuitive effect – EU born – the coefficient still suggests a positive association with Leave.

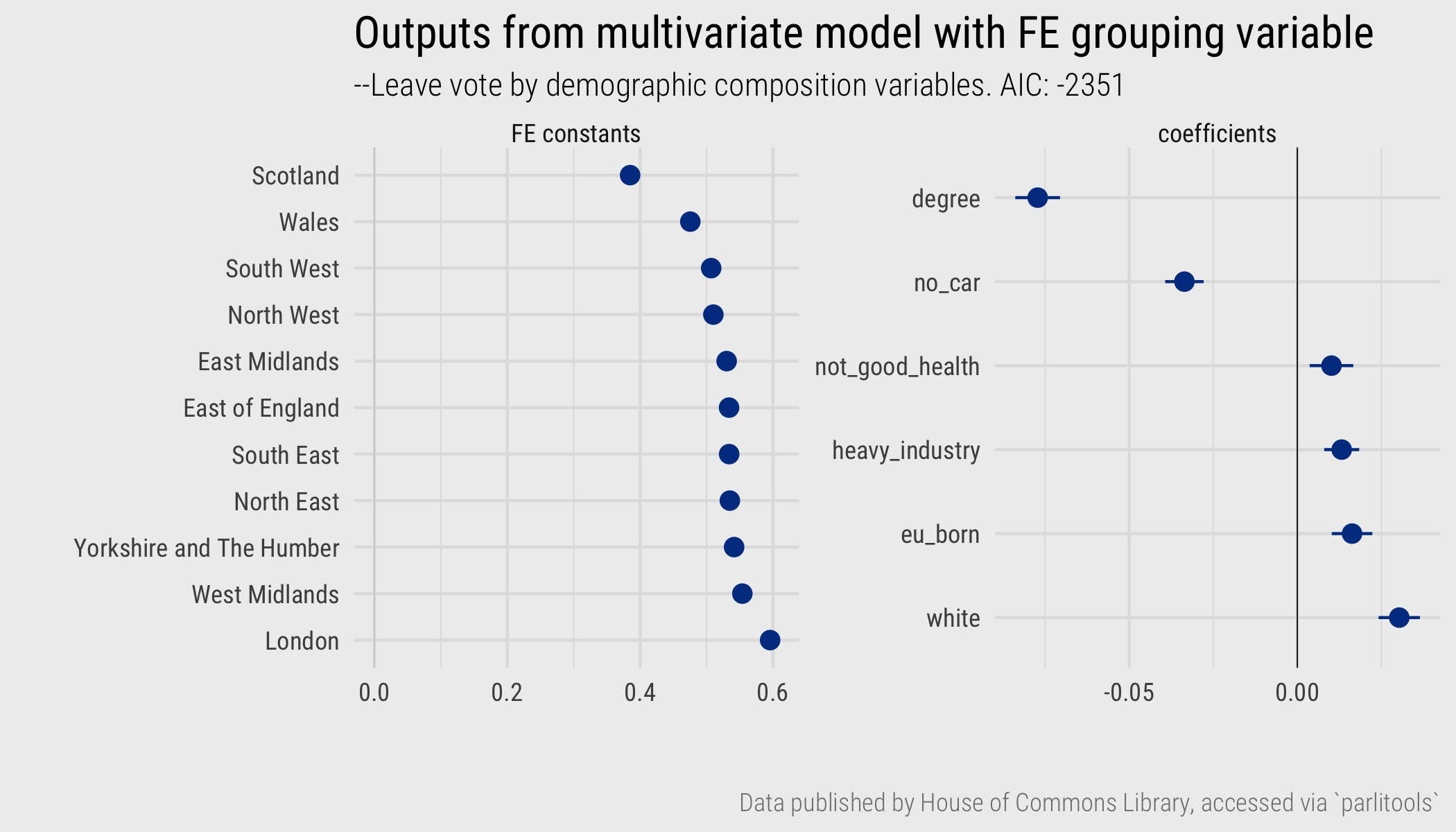

Figure 3: Output from multiple regression model of Leave vote by demographic composition of constituency with FE on region.

Geographic context as grouped effects

The benefit of the FE adjustment is that it provides coefficient estimates that are not affected by between-region variation. The derived FE constants themselves also allow group differences to be quantified net of differences in demographics. However, they simply identify the fact that this variation exists – they do not permit non-stationarity in process. It is conceivable that the strength and direction of association between Leave and the candidate demographic variables may vary between regions. For example, that increased levels of EU-born (non-UK) residents might affect area-level voting differently in certain regions than others.

Rather than simply allowing a constant term to vary, we can update the linear regression model with an interaction term (\(\textcolor{highlight}{\beta_{1j}}{x_{i1}}\)) that allows the coefficient estimates to vary depending on region. This means we get a separate constant term and coefficient estimate of the effect of each variable on Leave for every region – it provides a framework for exploring regionally-distinct effects.

\[\begin{align*} y_{i}&= \textcolor{highlight}{\gamma_{j}} + \textcolor{highlight}{\beta_{1j}}x_{i1} + \varepsilon_{i} \\ \end{align*}\]

• \(\textcolor{highlight}{\gamma_{j}}\), a constant term similar to an intercept for region \(j\), \(+\)
• \(\textcolor{highlight}{\beta_{1j}}x_{i1}\), the region-specific slope, indicating in which direction and to what extent some demographic variable at constituency \(i\) and in region \(j\) is associated with Leave, \(+\)
• \(\varepsilon_{i}\), the difference between \(y_{i}\) (the observed value) at constituency \(i\) and the unobservable true ‘population’ value of the Leave vote in that constituency (statistical error)

Figure 4 is an updated set of scatterplots again annotated with ‘virtual’ regression lines, now with slopes that vary. Again the structure of these slopes is interesting:

• parallel slopes with large variation in vertical position suggest that there is variation in the outcome (Leave) between regions, but a consistent association between variables exists;
• substantial changes in slope (cluttered display) suggests that the pattern of association switches between regions. Most obvious here is the EU-born and no-car variable.

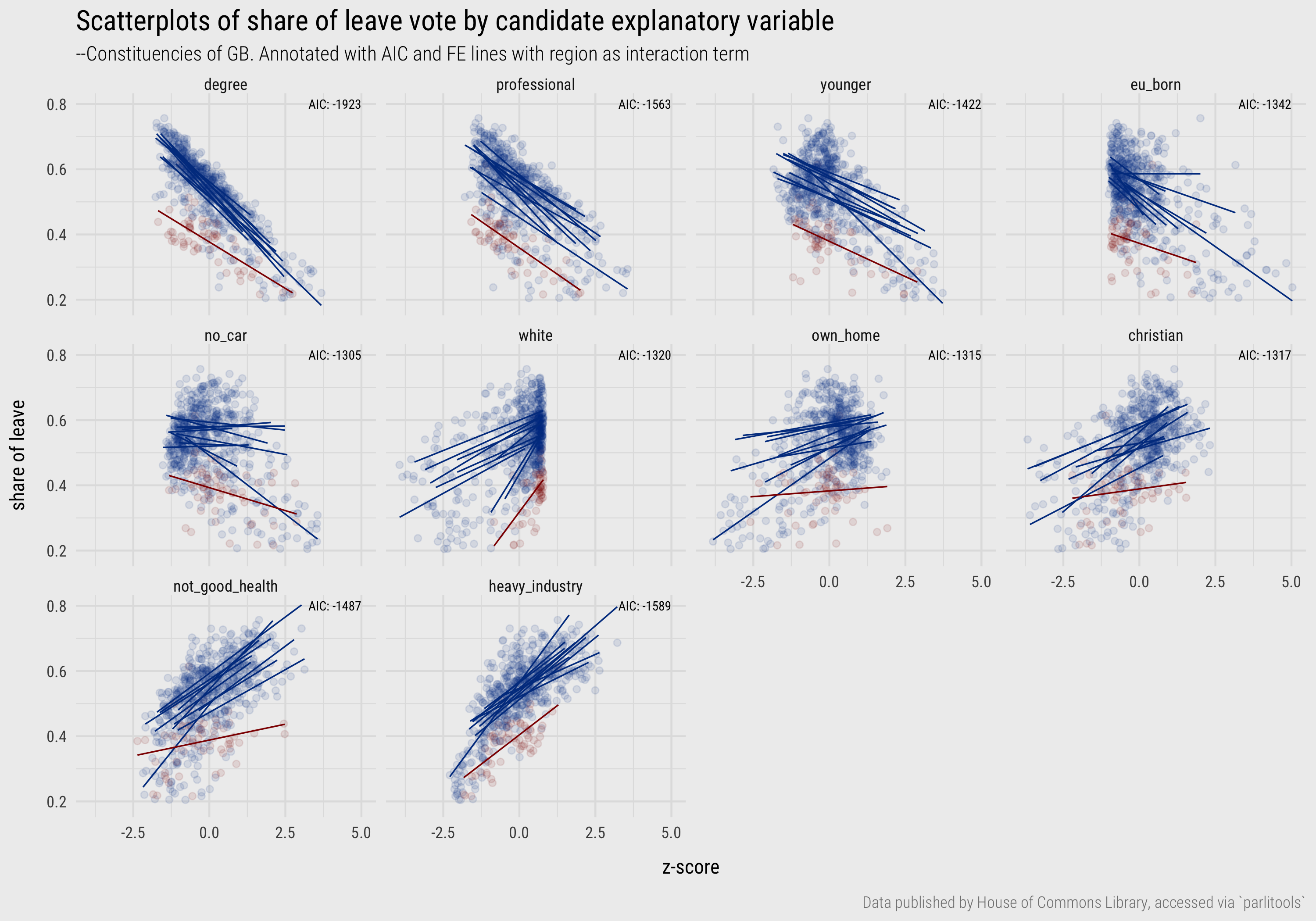

Figure 4: Scatterplots of constituency Leave vote against candidate explanatory variables, annotated with FE regression lines for interaction on region. Scotland is highlighted red.

In Figure 5 are region-specific coefficients derived from a multivariate model with an interaction term introduced on region. In each region, degree-educated has a negative coefficient and with reasonably tight uncertainty estimates, or at least CIs that do not cross 0. The other variables are subject to more uncertainty. The no-car variable is also negatively associated with Leave, a variable we thought may separate metropolitan versus peripheral contexts, but the strength of negative association, after controlling for variation in other demographic factors, does vary by region. The heavy industry variable, previously identified as being strongly associated with Leave (e.g. previous session), has a clear positive association only for London and to a much lesser extent for North West and Wales (small coefficients). The EU born variable is again the least consistent as it flips between positive and negative association when analysed at the regional-level: after controlling for variation in other demographic characteristics it is positively associated with Leave for North West, Scotland, South West, but negatively associated with Leave for the North East (though with coefficients that are subject to much variation).

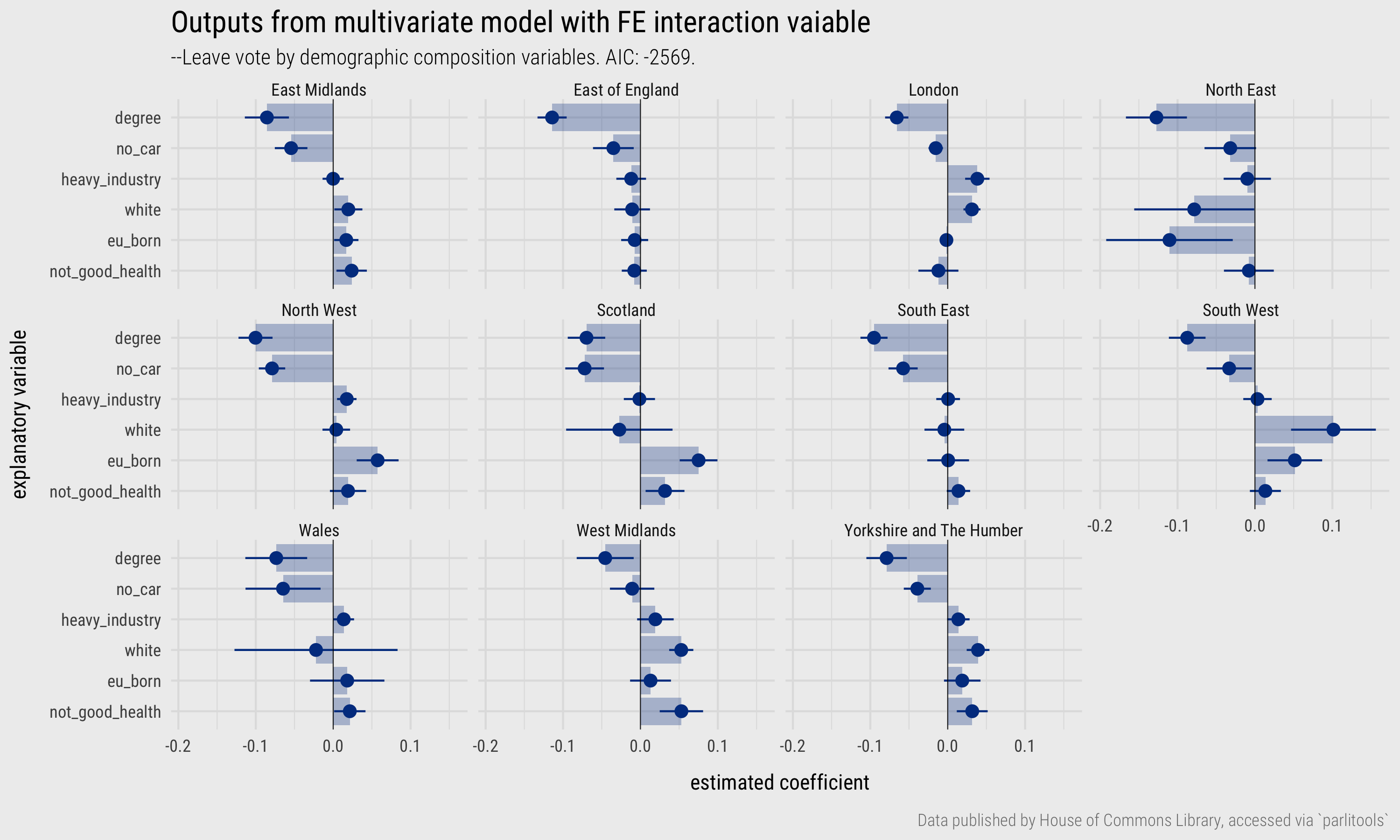

Figure 5: Output from multiple regression model of Leave vote by demographic composition of constituency with FE and interaction on region.

Addressing estimate volatility

Given the reasonably large standard errors, it is difficult to make strong claims about regional nonstationarity in process form the models presented above. This might be due to overfitting, caused by the fact that we introduce additional terms to the regression model (region as an interaction) without adding data – our coefficients may begin to fit noise rather than true effects.

Given the fact that our data are hierarchically structured (constituencies sit within regions) hierarchical multi-level modelling may be more appropriate to modelling this sort of regional grouping. Multi-level modelling uses partial pooling to make estimated coefficients more conservative where there are comparatively few observations in particular groupings. There are numerous resources on multi-level modelling in R (see Roback & Legler 2021 for an in-progress example). The reason for the FE approach here is a prosaic one: I wanted to use model-building functions in R that worked well with tidymodels, although annoyingly I’ve recently noticed that a package for combining multi-level modelling with tidymodels is under development here.

Alternatively, it may be useful to generate different model formulations for different regions – e.g. particular combinations of explanatory variable. Penalised regression provides a principled means of automatic variable selection and has been applied to generate regional and state area-level model specifications for the Brexit (Beecham, Slingsby, and Brunsdon 2018) and Trump (Beecham, Williams, and Comber 2020) votes, again with more reliably coefficient estimates.

Geographic context as continuous effects

Geographically-weighted (GW) statistics provides a mechanism for exploring the extent to which values and associations vary continuously over space (Brunsdon, Fortheringham, and Charlton 2002). This involves generating local statistics, and in the case of Geographically Weighted Regression (GWR) local regression coefficients, for each spatial unit. If applied to our dataset, separate regression coefficients for each constituency are estimated that take into account observed values for Leave and the demographic variables in nearby constituencies. GW-statistics enables spatial non-stationarity in process to be flexibly explored and characterised. As GWR involves generating many hundreds of parameter estimates, visual analysis are often used in its interpretation (e.g. Dykes and Brunsdon 2007). I don’t want to burden you with yet another modelling paradigm, but this repo contains some (rather dated) materials I previously prepared on GWR with the Brexit dataset.

Import

The template file lists the required packages: tidyverse, sf, parlitools and also the tidymodels package for extracting model outputs. You will also need to re-load the datasets that you created in the previous session:

• cons_outline : a data frame loaded from a .geojson file containing boundaries for drawing constituencies.
• data_for_models : data frame containing the outcome variable and z-score transformed explanatory variables.

Model FE

To include a FE on region, we convert region to a factor variable (this effectively creates dummies) and include it as an additional term in lm(). By default a “reference” region appears and the FE regression coefficients (those for region) describe the effect on the outcome of a constituency being in a given region relative to the “reference” region. So the reference region (intercept) in the model below is the East Midlands – the first in the factor to appear alphabetically. The signed coefficient estimates for regions identifies whether, after controlling for variation in demographics, the Leave vote for a particular region is expected to be higher or lower than this.

model <- lm(leave ~ region +  degree  + eu_born + white  + no_car +
                      not_good_health + heavy_industry, data=data_for_models)

summary(model)

Call:
lm(formula = leave ~ region + degree + eu_born + white + no_car +
    not_good_health + heavy_industry, data = data_for_models)

Residuals:
      Min        1Q    Median        3Q       Max
-0.198730 -0.020953  0.001834  0.023086  0.115457

# Coefficients:
#                                  Estimate Std. Error t value Pr(>|t|)
# (Intercept)                     0.5896429  0.0330259  17.854  < 2e-16 ***
# regionEast of England           0.0036335  0.0078731   0.462  0.64459
# regionLondon                    0.0654256  0.0094823   6.900 1.30e-11 ***
# regionNorth East                0.0048168  0.0094500   0.510  0.61044
# regionNorth West               -0.0200108  0.0072752  -2.751  0.00612 **
# regionScotland                 -0.1452946  0.0084285 -17.238  < 2e-16 ***
# regionSouth East                0.0037722  0.0075166   0.502  0.61595
# regionSouth West               -0.0232999  0.0078890  -2.953  0.00326 **
# regionWales                    -0.0547155  0.0085991  -6.363 3.87e-10 ***
# regionWest Midlands             0.0236169  0.0074457   3.172  0.00159 **
# regionYorkshire and The Humber  0.0112335  0.0076235   1.474  0.14112
# degree                         -0.0092785  0.0004078 -22.753  < 2e-16 ***
# eu_born                         0.0060143  0.0011372   5.289 1.72e-07 ***
# white                           0.0017054  0.0001765   9.662  < 2e-16 ***
# no_car                         -0.0029004  0.0002519 -11.513  < 2e-16 ***
# not_good_health                 0.0030277  0.0009866   3.069  0.00224 **
# heavy_industry                  0.0030330  0.0006117   4.958 9.23e-07 ***
# ---
# Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1
#
# Residual standard error: 0.03713 on 615 degrees of freedom
# Multiple R-squared:  0.8973,  Adjusted R-squared:  0.8946
# F-statistic: 335.9 on 16 and 615 DF,  p-value: < 2.2e-16

We want our model to represent a dummy for every area and so we add -1 to the specification. Doing this removes the intercept (reference region), and this is why \(R^2\) is no longer meaningful.

# Include `-1` to include a dummy for every area.
model <- lm(leave ~ region +  degree  + eu_born + white  + no_car +
                      not_good_health + heavy_industry -1, data=data_for_models)

summary(model)

# Coefficients:
#                                  Estimate Std. Error t value Pr(>|t|)
# regionEast Midlands             0.5896429  0.0330259  17.854  < 2e-16 ***
# regionEast of England           0.5932764  0.0309206  19.187  < 2e-16 ***
# regionLondon                    0.6550685  0.0309627  21.157  < 2e-16 ***
# regionNorth East                0.5944597  0.0342229  17.370  < 2e-16 ***
# regionNorth West                0.5696321  0.0329834  17.270  < 2e-16 ***
# regionScotland                  0.4443483  0.0314911  14.110  < 2e-16 ***
# regionSouth East                0.5934151  0.0308656  19.226  < 2e-16 ***
# regionSouth West                0.5663430  0.0320231  17.685  < 2e-16 ***
# regionWales                     0.5349274  0.0340264  15.721  < 2e-16 ***
# regionWest Midlands             0.6132598  0.0326154  18.803  < 2e-16 ***
# regionYorkshire and The Humber  0.6008764  0.0325957  18.434  < 2e-16 ***
# degree                         -0.0092785  0.0004078 -22.753  < 2e-16 ***
# eu_born                         0.0060143  0.0011372   5.289 1.72e-07 ***
# white                           0.0017054  0.0001765   9.662  < 2e-16 ***
# no_car                         -0.0029004  0.0002519 -11.513  < 2e-16 ***
# not_good_health                 0.0030277  0.0009866   3.069  0.00224 **
# heavy_industry                  0.0030330  0.0006117   4.958 9.23e-07 ***
# ---
# Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1
#
# Residual standard error: 0.03713 on 615 degrees of freedom
# Multiple R-squared:  0.9953,  Adjusted R-squared:  0.9951
# F-statistic:  7625 on 17 and 615 DF,  p-value: < 2.2e-16

Again, it is useful to extract details of fit, residuals and other diagnostics in a tidymodel way:

model <- data_for_models %>%
  mutate(type="full_dataset", region=as.factor(region)) %>%
  nest(data=-type) %>%
  mutate(
    # Include `-1` to eliminate the constant term and include a dummy for every area.
    model=map(data, ~lm(leave ~ region +  degree  + eu_born + white  + no_car +
                          not_good_health + heavy_industry -1, data=.x)),
    # glance() for each model fit
    fits = map(model, glance),
    # tidy() for coefficients
    coefs = map(model, tidy),
    # augment() for predictions/residuals
    values=map(model, augment)
  )

Model Interaction

To include an Interaction on region, we need to set a variable that will be used to represent these regional constants (cons), and the Interaction is added with the notation :.

model <- data_for_models %>%
  mutate(
    type="full_dataset",
    # Convert to factor variable.
    region=as.factor(region),
    # We need to explicitly set a constant term that we can allow to vary on region.
    cons=1
    ) %>%
  nest(data=-type) %>%
  mutate(
    # `:` Notation implies interaction variables
    model=map(data, ~lm(leave ~ 0 +  (cons + degree  + eu_born + white  + no_car +
                          not_good_health + heavy_industry):(region), data=.x)),
    # glance() for each model fit
    fits = map(model, glance),
    # tidy() for coefficients
    coefs = map(model, tidy),
    # augment() for predictions/residuals
    values=map(model, augment)
  )

Plot tidy models

Figure 5 is an extension of the model outputs plot in the previous session.

The code:

model %>%
  unnest(cols = coefs) %>% # unnest output from glance
  select(-c(data, model, fits, model, values)) %>%
  separate(term, into= c("term", "region"), sep=":") %>%
  mutate(
    region=str_remove(region,"region")
  ) %>%
  filter(term!="cons") %>%
  ggplot() +
  geom_col(aes(x=reorder(term, -estimate), y=estimate), alpha=.3)+
  geom_pointrange(aes(x=reorder(term, -estimate),
                      y=estimate,ymin=estimate-1.96*std.error, ymax=estimate+1.96*std.error)) +
  geom_hline(yintercept = 0, size=.2)+
  facet_wrap(~region) +
  coord_flip()

The plot specification:

1. Data: A data frame of model coefficients extracted from the multivariate model object using tidy. To make clean plot labels, we need to remove unnecessary text in the term variable (e.g. “cons:regionEast Midlands”). separate() allows us to split this column on : and then str_remove() is quite obvious. We do not wish to plot the FE constants and so filter() them out.
2. Encoding: y-position varies according to the size of the coefficient estimate and the 95% confidence intervals, defined using ymin and ymax.
3. Marks: geom_pointrange(), which understands ymin and ymax, for the dots with Confidence Intervals. I have also included light bars in the background (geom_col()) as I think this aids interpretation of the direction and size of the coefficients.
4. Setting: coord_flip() to make variable names easier to read.
