Before the practical : If you have not done so already, read and work through the Tableau page.

In this session you will use Tableau to generate effective data visualizations. Tableau is a data visualization toolkit developed by Information Visualization researchers with the intention of democratising visual data analysis. It comes with a point- and click- interface and is largely code-free.

By the end of this week’s session you should be able to:

  • connect Tableau to data files

  • demonstrate command of the the Tableau interface, particularly:

    • Dimensions and Measures

    • filters

    • groupings

    • dashboards with linked views

  • use Tableau functionality, and your understanding of visual encodings, to generate data-rich information graphics

You will be working with a special class of geospatial data collected via the UK Census: origin-destination flow data.

Task 1. Download data using UK Data Service interface

A very large, often tedious part, of data science workflow is data collection and cleaning. You will of course be aware of the ever-expanding array of datasets made available by organisations, institutions and private companies. Over the last decade, well-documented Application Programming Interfaces (APIs) have increasingly been used as a consistent and replicable means of accessing data. Often these are designed with bindings to programming languages and environments such as Python and R and so can be built into the workflows of analysts with comparatively rudimentary programming experience. These bindings are typically contributed by developers in the Data Science community — Kyle Walker’s tidycensus R package provides a very useful interface to the US Census Bureau’s Census data.

In this session you will query the 2011 UK Census data using a (more traditional) point- and click- interface: the UK Data Service. Whilst this has its disadvantages — the interface is idiosyncratic and replicating workflows, or adjusting queries, is far more tedious than when working with an API — the UK Data Service provides access to a reasonably large number of administrative datasets that you may find useful, especially when you progress onto coursework activity. After the practical, you may wish to spend some time exploring the datasets available to you.

The instructions below provide details for collecting a special class of Census data — origin-destination (OD) flow data. In this case, the data you will collect describe travel-to-work flows between Local Authority Districts (or Boroughs) of London, of which there are 33. For each borough-to-borough OD pair — for example Camden-to-Westminster —  the dataset you collect will describe the total number of residents living in Camden who commute to Westminster. You will query a dataset that differentiates by travel mode — so the relative number of residents commuting between pairs of boroughs by car, bike or public transport can be considered.

Instructions

Navigate to https://www.ukdataservice.ac.uk Get data (horizontal tab), Open data (left list). Then under Census flow data click on the link Explore via WICID. Launch the WICID query builder by clicking WICID - the flexible query builder, then Start a new session - no username or password required.

Instructions

From the WICID landing page click on the Data tab. From here, Select by Dataset and Table, Commuting and journey to education data, 2011, 2011 SWS Merged LA/LA [Location of usual residence and place of work by method of travel to work] - WU03UK - Open (the fourth entry), Location of usual residence and place of work by method of travel to work, Select All.

Instructions

Then click on the Geography tab and Select or edit origins, List Selection, UK Local Authorities (merged) 2011, scroll down and click Select a higher level geography, 2011 English Regions plus rest of UK, Confirm that you wish to proceed using this geography, check the box 7 / London, then Add chosen areas. You should see a text notification saying "Status: 32 origins currently selected".

Instructions

Now click again on Geography and repeat for destinations: Select or edit destinations, List Selection, UK Local Authorities (merged) 2011, scroll down and click Select a higher level geography, 2011 English Regions plus rest of UK, Confirm that you wish to proceed using this geography, check the box 7 / London, then Add chosen areas. You should see a text notification saying "Status: 32 destinations currently selected".

Instructions

Click the Run tab, then Output tab, Tabular output, select the check box Origin - destination pair list under Output layout and Comma separated values under Output format. Click Preview Output and Download, - download output file, - download now.

Wow — that was quite a set of instructions! This somewhat reinforces the point about the benefits of accessing data programmatically. However, the above hopefully introduces you to the UK Data Service, which interfaces with a large array of datasets likely to be useful to you. You should now have a delimited text file (wicid_output.csv) in your downloads folder. Open this using Microsoft Excel.

Glancing at the field labels in the top four rows and the data in the subsequent rows you should get a sense of how the OD data are structured. Each record (row) is a unique origin-destination (OD pair) describing commuter flows between pairs of boroughs. The quantitative fields represent counts of residents commuting between each borough-borough pair by dominant travel mode. The travel mode categories are mutually exclusive and so individuals are not counted twice along the columns.

Task 2. Load data into Tableau

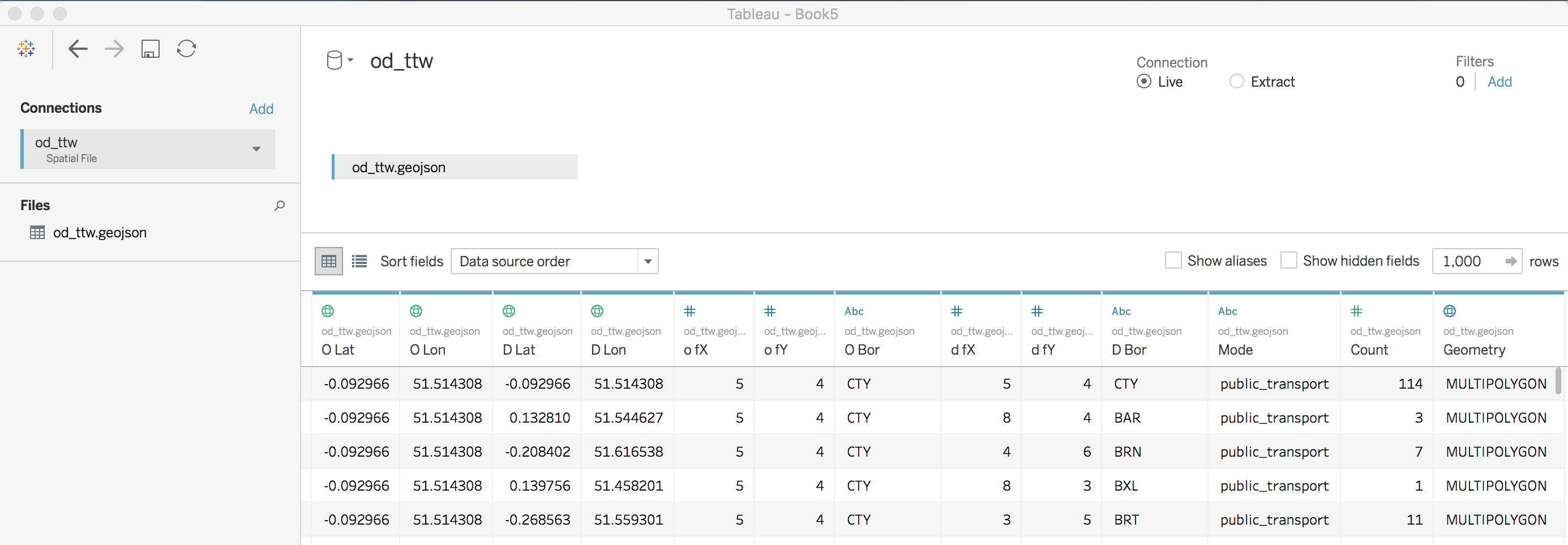

Figure 1: OD travel-to-work data in Tableau Data Source window.

tableau data

Keen observers might have noticed that in the wicid_output.csv file there are 1,024 records containing data  — 32 boroughs^2. I mentioned earlier that there are 33 London boroughs. Unfortunately for this category of WICID output two boroughs — City of London and Westminster — are merged. The data in this download are also not organised ideally for Tableau and it would be useful to add in spatial data describing the geometry and relative location of London boroughs so that spatial relations can be explored.

That the data harvested from some external resource is not ideally formatted is to be expected. As I mentioned earlier, about 80% of data analysis time is spent on data processing activities. To speed things up, I’ve re-arranged the dataset, gotten access to data definitions that allow Westminster and City of London to be differentiated and augmented the OD dataset with spatial context (geometries from the Open Geography Portal and semi-spatial layout via aftertheflood). I’ve written the dataset to a .geojson file.

Instructions

Download the file from this link. Unzip and then load into Tableau with Connect to data, Spatial file, browse to od_ttw.geojson.

Inspecting the Data Source window you will notice that Tableau automatically makes inferences about data types and measurement levels. Fields with numerical values appear with a # in the first row of the table headers, textual fields with Abc and geographically referenced data with a geodesic globe-like symbol, interpreted by Tableau as WGS84 — pretty clever.

A quick overview of the fields available to you:

  • O Lat, O Lon : together, the centroid of the origin borough (home) of commuters.

  • D Lat, D Lon : together, the centroid of the destination borough (workplace) of commuters.

  • O fX, O fY : together, the approximate location of the origin borough (home) of commuters.

  • D fX, D fY : together, the approximate location of the destination borough (workplace) of commuters.

  • O Bor : the origin borough (home) of commuters, shortened to three letters.

  • D Bor : the destination borough (workplace) of commuters, shortened to three letters.

  • Mode : the travel mode taken (public_transport, foot_bike, car).

  • Count : the number of commuters travelling between each OD borough using a particular travel mode.

  • Geometry : an array of coordinates (type MULTIPOLYGON) describing the geometry of each destination borough.

Note that the primary key for the table is <O Bor, D Bor, Mode> : there is a unique record for each possible OD borough and travel mode pair.

Task 3. Generate a bar chart of commute frequency by travel mode, ordered by borough (frequency)

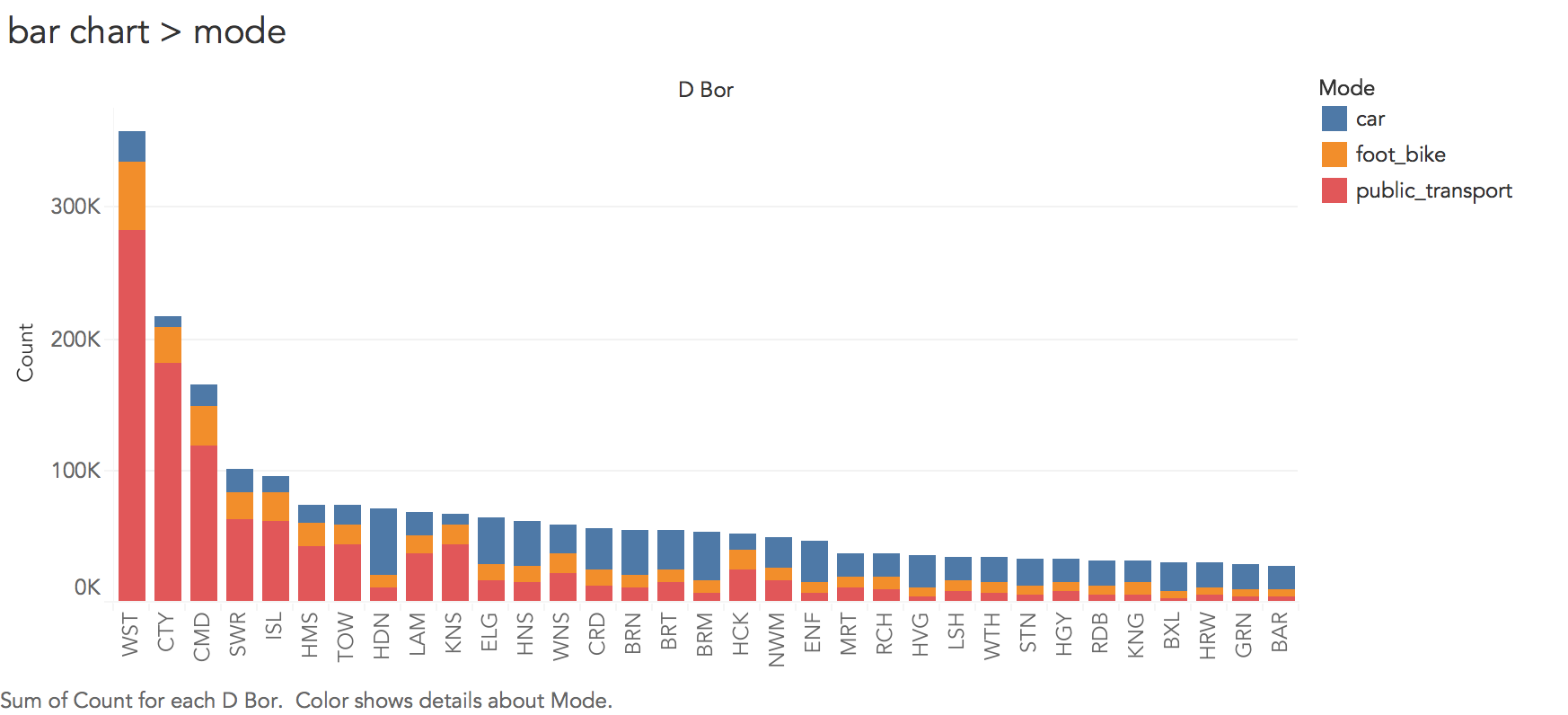

Figure 2: Bar chart of frequencies of within London commutes, 2011 Census.

bar chart mode

Instructions

Create a new worksheet by clicking on the New Worksheet tab in the bottom toolbar (next to Data Source). Rename the sheet "bar chart > mode".

If you’ve worked through the Tableau page the worksheet display should be familiar to you. The data are automatically organised into Dimensions and Measures (left margin). Dimensions are typically categorical variables used for grouping and pivoting data, which might be achieved via faceting to form small multiples or through colour hue, shape or other visual channels. Measures are quantitative (numerical) variables and mapped to size, colour and other visual channels. You can change this allocation by clicking and dragging on field names: drag o fX, o fY, d fX, d fY from Measures to Dimensions.

At the top are the Columns and Rows shelves. These can be loosely thought of as the x-position and y-position for your charts in Tableau. In the second margin from left is the Marks window. This provides access to the numerous visual channels to which data can be mapped.

You will soon discover that Tableau aggregates data according to the configuration provided to Rows, Columns and Marks. You will often wish to disaggregate, and to do so you will need to drag an attribute to the Detail icon (under Marks).

Instructions

Drag Count to the Rows shelf to generate a single bar summarising the total number of all London borough-borough commuters travelling by foot/bike, public transport and car according to 2011 Census (approx 2.2m). Drag Mode (a Dimension) to the Color mark to see a breakdown by travel mode and D Bor to Columns, ordering by frequency by selecting the sort descending button in the top toolbar.

Interpreting the chart (Figure 2) requires a little familiarity with London’s geography. We find that a very large number of commuting journeys are to two boroughs : Westminster and the City of London (although also Camden). These are boroughs in central London clearly containing many jobs and where travel by car is problematic (notice the lack of blue). Boroughs with smaller bars overall are generally more peripheral (outer) boroughs and notice the change in colour here — for outer London boroughs, commuting by car is more common.

Thinking about the visualization fundamentals introduced in the lecture, the choice of encodings is effective. We are encoding a continuous quantitative variable (Count) with bar length, we differentiate a nominal category variable (Mode) using colour hue and we order boroughs using position along the x-axis based on frequency. However, you might also remember from the lecture than in their seminal study and in the crowd-sourced follow-up study, Cleveland & McGill and Heer & Bostock found judging lengths along an aligned scale to be considerably more effective than on an unaligned scale. In the stacked bar chart in Figure 2, the foot_bike and car categories are not aligned. This is likely to be problematic were more categories of travel mode (say five or six) to be compared. You may wish to update your chart to generate bars on an aligned scale for each category of travel mode (faceting on travel mode — as in Figure 3).

Instructions

Drag Mode onto the Rows shelf to facet the chart on travel mode.

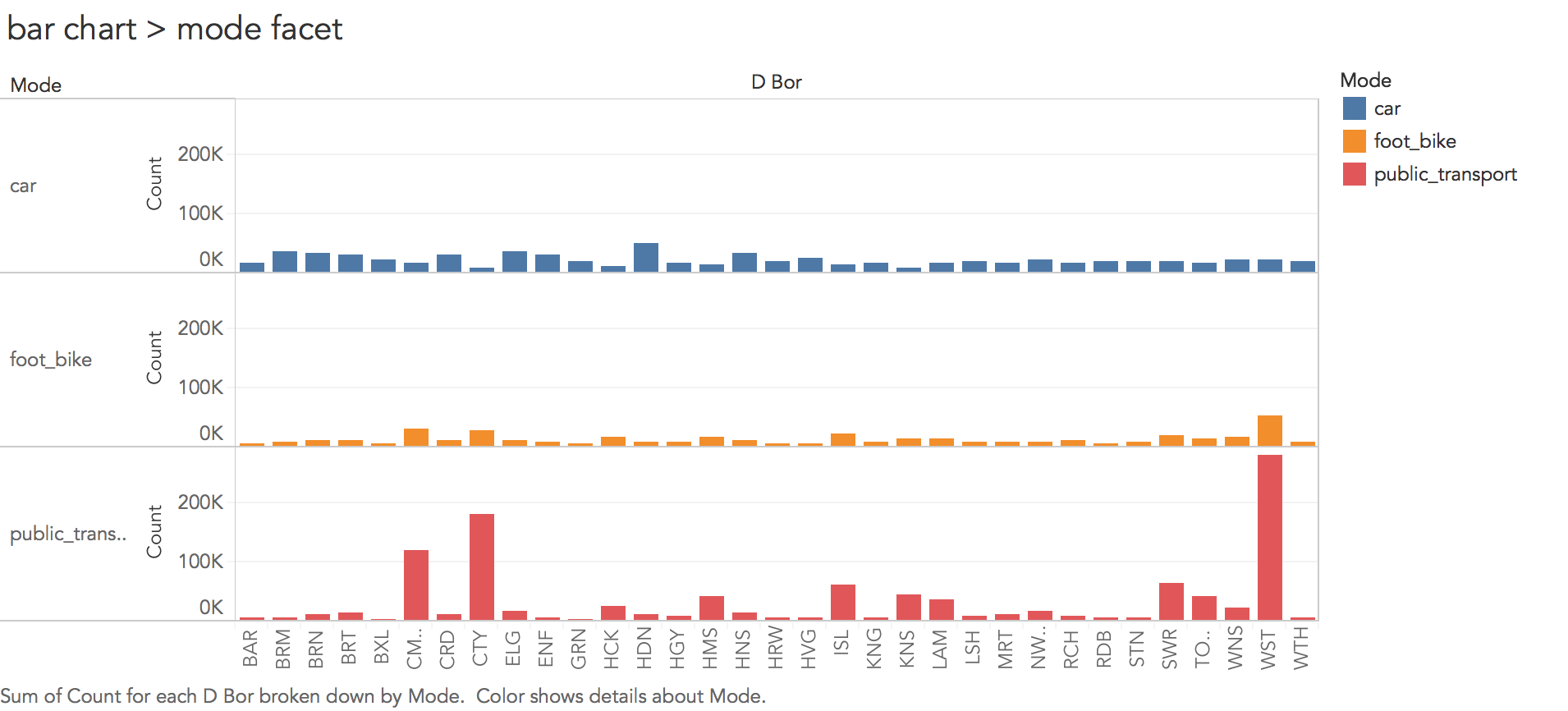

Figure 3: Bar chart of frequencies of within London commutes faceted by travel mode, 2011 Census.

bar chart mode facet

If you managed to create the faceted chart in Figure 3, you may wish to select the sort descending button in the top toolbar for each travel mode. This allows you to further explore the dominant travel mode into London boroughs. Great, you’ve just performed an interactive visual analysis query!

Task 4. Generate a map of commute frequency by travel mode, ordered by borough (spatial position)

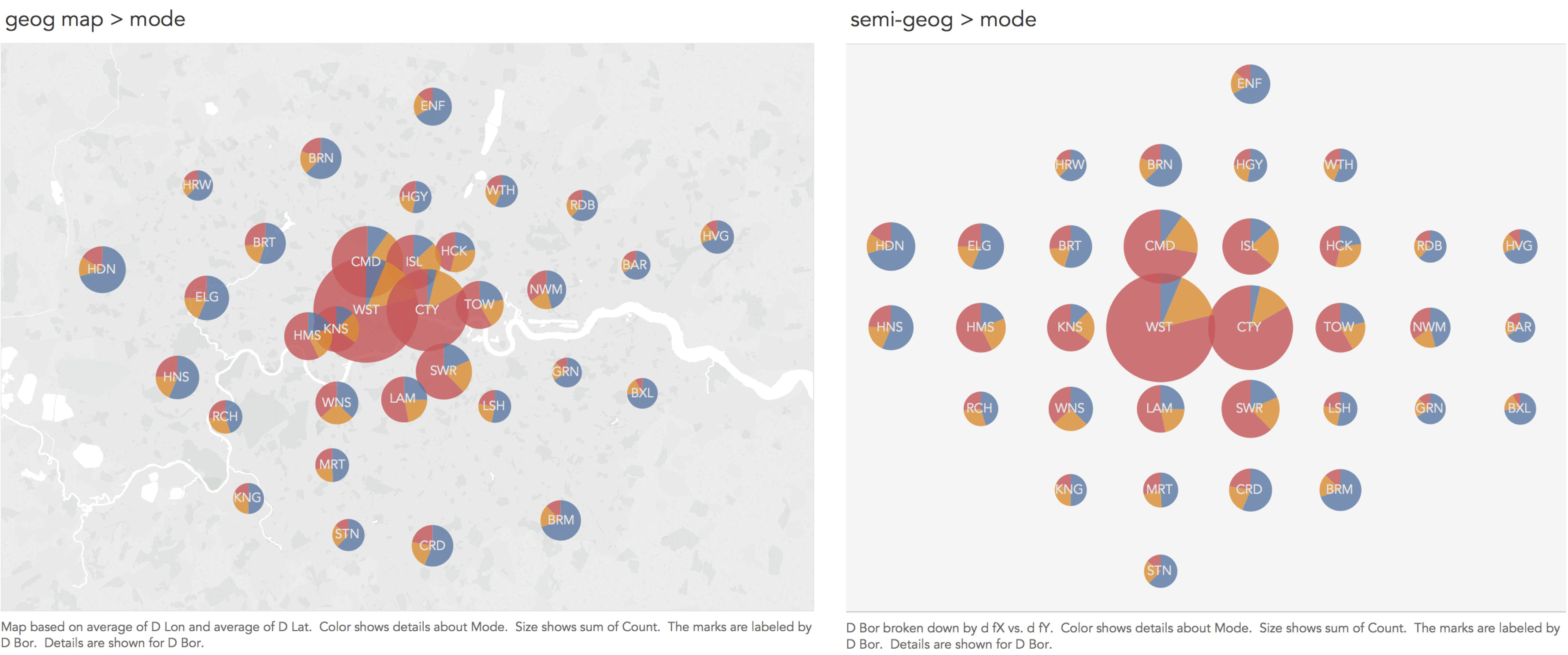

Figure 4: Maps of frequencies of within London commutes by travel mode, 2011 Census.

maps mode

So far we’ve a sense of commute frequency and travel mode type into London’s 33 boroughs and made some inferences about the nature of commuting given some existing knowledge of the city: that London-resident workers travel in greatest number to boroughs located in central London and that travel by public transport dominates for those travelling into these boroughs for work, while the reverse is true of peripheral boroughs with fewer commuters and travel by car dominating.

These claims could be investigated more directly by manipulating the plot encodings such that the bars in Figures 2 and 3 are not ordered by frequency, but by geographic position.

Instructions

Start a new worksheet and rename as "geog map > mode". Drag D lon onto the Columns shelf and D lat onto the Rows shelf. You should find that Tableau automatically generates a zoom- pan- slippy map and a single dot representing the avg longitude and latitude position of borough centroids in London. Drag D Bor to the Detail mark in order to create a dot representing each borough. Size the dots by frequency by dragging Count to the Size mark, then drag Mode to the Color mark. In the figure above I have slightly adjusted the settings for these marks and added labels. You may wish to do the same.

A problem with arranging data graphics according to their exact geographic position, clearly, is that activity tends to concentrate in more densely populated areas (with jobs in this case) — the circles overlap one another in central London. Again, there are much more problematic instances of this than in Figure 4. However, one solution is to relax geography a little and arrange boroughs according to their approximate spatial position (right of Figure 4). There is a large literature on how to effect semi-geographic arrangements. The arrangement in Figure 4 is based on the aftertheflood layout, but Meulemans et al. (2017) provides an overview and suggests an interesting and elegant approach to automatically generating these layouts.

Instructions

Create a copy of your geog map > mode by right clicking on the tab in the bottom toolbar and selecting Duplicate, then rename as "semi-geog > mode". Replace D lon with D fX on the Columns shelf and D lat with d fY on the Rows shelf. Resize the cells defining each row-column instance by clicking and dragging on the cell boundary.

Organising boroughs according to their geographic position has several advantages: it reveals a reasonably complex set of spatial relations. You might have noticed that Figure 4 does not use the most effective visual encoding channels: we cannot show frequencies on an aligned scale since position is already in use. Angle and area are also not the best visual channels for conveying quantities. The design decisions can nevertheless be justified. With only three categories to distinguish using colour hue, angle works fine at conveying the relative importance of travel mode and with such large differences in absolute frequencies between central London boroughs and those at the periphery, the fact that we underestimate circle size for Westminster and the City (given Cleveland & McGill 1984) is not so much of a concern.

Representing information on both the absolute and relative size of a phenomenon simultaneously is a common requirement in visualization design: see Wickham & Hofman (2011) for a more detailed deiscussion of the challenges.

Task 5. Generate a full OD matrix of frequencies by travel mode

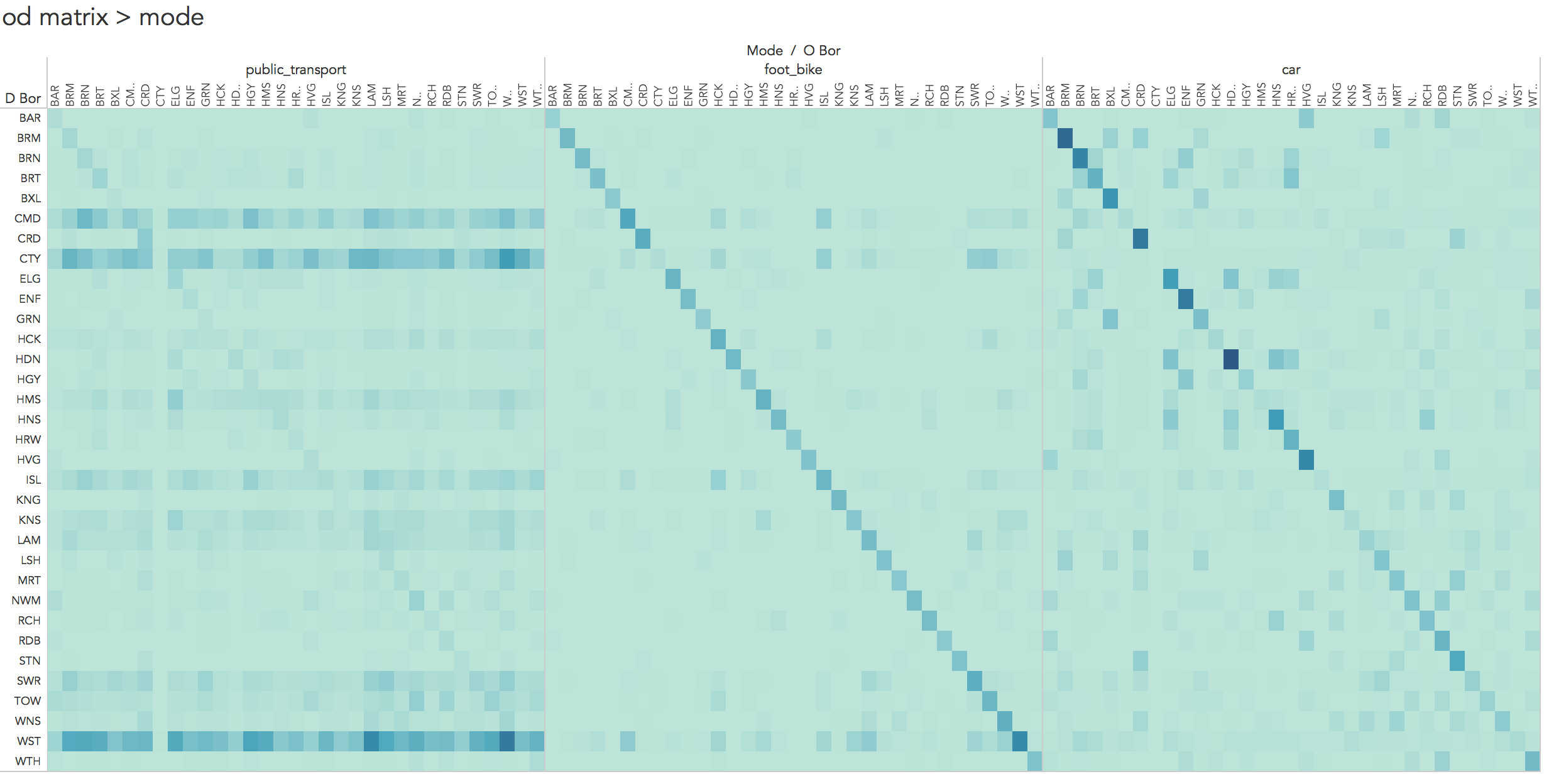

Figure 5: OD matrix of frequencies of London borough-borough commutes faceted by travel mode, 2011 Census.

od matrix mode

You may have noticed that in the analysis above we’ve simply been aggregating over destinations and summarising frequencies by travel mode into those boroughs. We’ve not considered the origin data — the boroughs from which residents are travelling. There are 33 boroughs in London and therefore 3,267 (33^2 x 3 travel modes) possible OD pairs to analyse. This makes (visual) analysis of the full OD dataset challenging.

In Figure 5, the full OD data are represented as an OD matrix. Boroughs are ordered alphabetically left-to-right and top-to-bottom and cells coloured according to frequency.

Instructions

To create the full OD matrix : Start a new worksheet and rename "od matrix > mode". Drag D Bor to the Rows shelf and O Bor to the Columns shelf. Then drag Count to the Color mark. You will need to play around with the cell sizing in order to fit to a single screen. In order to facet on travel mode, drag Mode onto the Columns shelf ensuring that it is placed before the O Bor pill.

Analyse

What can be inferred from Figure 5 about patterns of OD commuting between London boroughs? How does this structure vary by travel mode?

Task 6. Generate an interactive choropleth of frequencies by origin

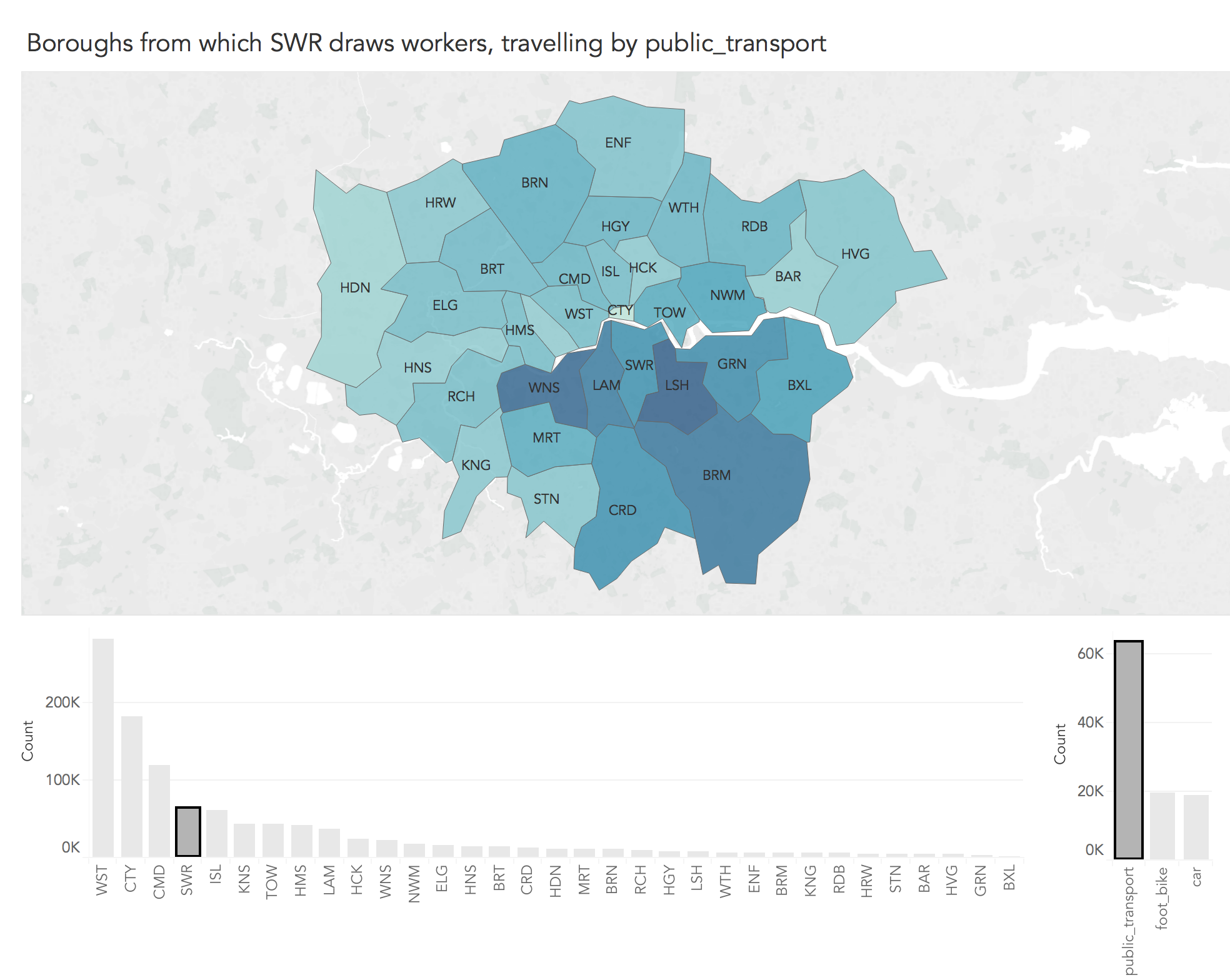

Figure 6: Interactive choropleth map displaying frequencies of home boroughs from which the selected borough draws workers, 2011 Census.

choropleth origin mode interact

Figure 5 is certainly data dense — 3,267 OD flow values are encoded! However, since cells in the matrix are ordered alphabetically, it is difficult to make inferences around more complex spatial patterns in OD commuting behaviour. Representing spatial relations in OD data is challenging. Attempts that involve drawing lines between OD pairs often fail (e.g. this blog post). One solution, proposed by Jo Wood is Spatially-Ordered OD matrices, where the cells in the OD matrix are reordered according to their geographic position. This results in spatially-arranged small multiple maps — in this case there would be 33 representing destinations (workplaces), each displaying counts of commuter origins.

Generating these layouts in Tableau is not easy, though is possible. Inspired by this technique we will generate an interactive choropleth which focuses on journeys to each destination borough (workplace) in turn, displaying frequencies of the origin boroughs from which the destination borough draws workers.

Instructions

First create charts that will be used to filter the choropleth. Start a new worksheet and rename "bar chart > borough filter". Drag D Bor to the Columns shelf and Count to the Rows shelf. Colour the bars light grey. Start another new sheet and rename "bar chart > mode filter". Drag Mode to the Columns shelf and Count to the Rows shelf. Again, colour the bars light grey.

Instructions

Next create the choropleth itself. Start a new sheet and rename it "choropleth > origins mode interact". Drag Longitude (generated) to the Columns shelf, Latitiude (generated) to the Rows shelf and Geometry to the Detail mark. You should see a filled map of London borough outlines. Drag D Bor to the Detail mark, O Bar to the Label mark and Count to the the Color mark. At the moment the fill doesn’t mean too much as we need to filter to select a single destination (workplace) borough.

Instructions

Start a new dashboard by clicking on the New Dashboard icon and rename "dashboard > choropleth interact". Hopefully you will have a sense of Tableau’s dashboard environment from the Tableau page. Under Sheets in the left margin there is a list of your created worksheets. Drag choropleth > origins mode interact into the main dashboard window. Click on the chart. The chart window should now be outlined with a dark border. Select the down arrow in the top right-hand corner of the chart window and check the Floating option. Adjust the size and position of the chart to match that of Figure 6. Drag bar chart > borough filter and bar chart > mode filter and resize and reposition in the same way. When selecting on these charts (e.g. when outlined with a dark border), check the Use as Filter icon in the top right corner — do so for both bar chart > borough filter and bar chart > mode filter.

Interact

Click the foot_bike bar and CTY bar: the choropleth is now displaying frequencies of residents from boroughs commuting into the City of London by foot or bike. Now click on public_transport : as expected the City of London draws workers travelling by tube, bus and train from a far wider set of boroughs than by foot and bike.

Instructions

A dynamic chart title will aid interpretation. Double-click on the title for the choropleth map. An Edit Title window will appear. This defaults to <Sheet Name> — the <> syntax is used to inject named objects. Replace this text with "Boroughs from which <D Bor> draws workers, travelling by <Mode>" — the selected travel mode and destination borough is injected into the chart title.

Analyse

Spend some time exploring flows into London boroughs by travel mode. What observations can be made about commuter travel behaviour?

I’ve recently written a blog post describing some of the challenges of visualizing OD flow data, along with some implemented solutions using ggplot2. The post can be viewed from this link.

Assessed Task

This is a short, assessed task, borrowed heavilty from an activity written by Jason Dykes. It does not assume knowledge or skills above what you have learnt in the lecture and this session. Ideally, the task should be completed within the practical session — the aim is not to burden you with additional work.

The task is designed to:

  • check that you can produce outputs in Tableau

  • assess your understanding of data types and their visual encoding

The document into which you will work can be downloaded from this link (.docx format). Save this document to a local directory. Once you’ve completed the task, save using the filename "DVA_Unit5_<StudentID>", replacing <student ID> with your own student ID number. Upload the completed document to the VLE, via the Assessment page.

In Figure 7, I’ve included an example of a graphic I created on the same dataset, but deliberately not using (and not possible with) Tableau. Consult the lecture slides for a reminder of data types and visual variables (or channels).

Assessed task : Export

Select a single graphic from the set that you have just created. Edit the title with: "<your-name : > <some sensible title>". Remember you need to double click and update the contents of the Edit Title window. Export the graphic as a .png file by navigating to Worksheet, Export, Image. Paste the grahic into the Graphic box of the assessment template file.

Assessed task : Describe

Describe the encoding used in the graphic by completing the table under The Encoding section of the assessment template file.

Assessed task : Upload

Remove the comments from the assessment template as per the instructions at the top of the first page, save using the filename "DVA_Unit5_<StudentID>.docx" and upload to the VLE.

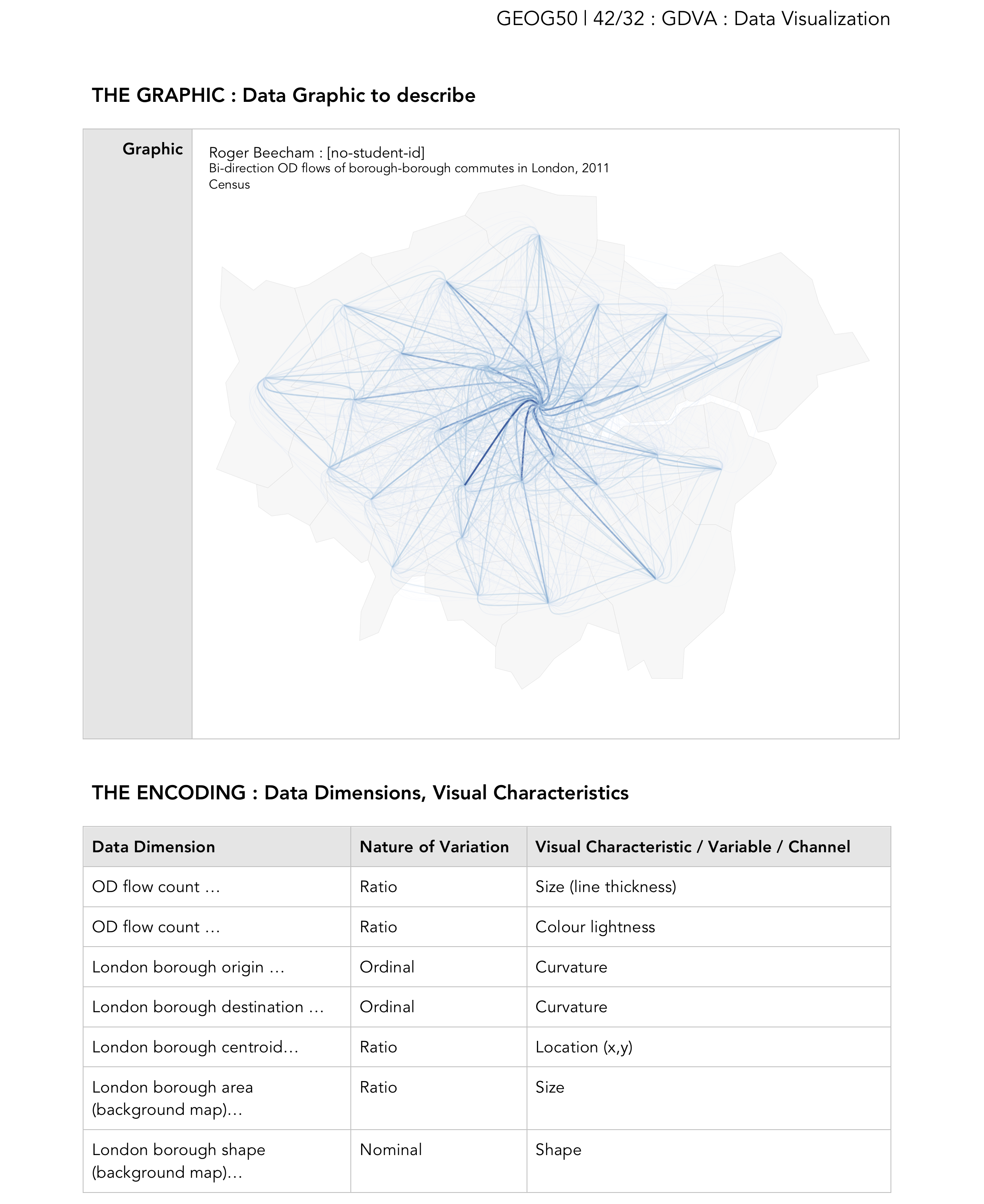

Figure 7: Example submission (non-Tableau example).

assessed task completed roger
